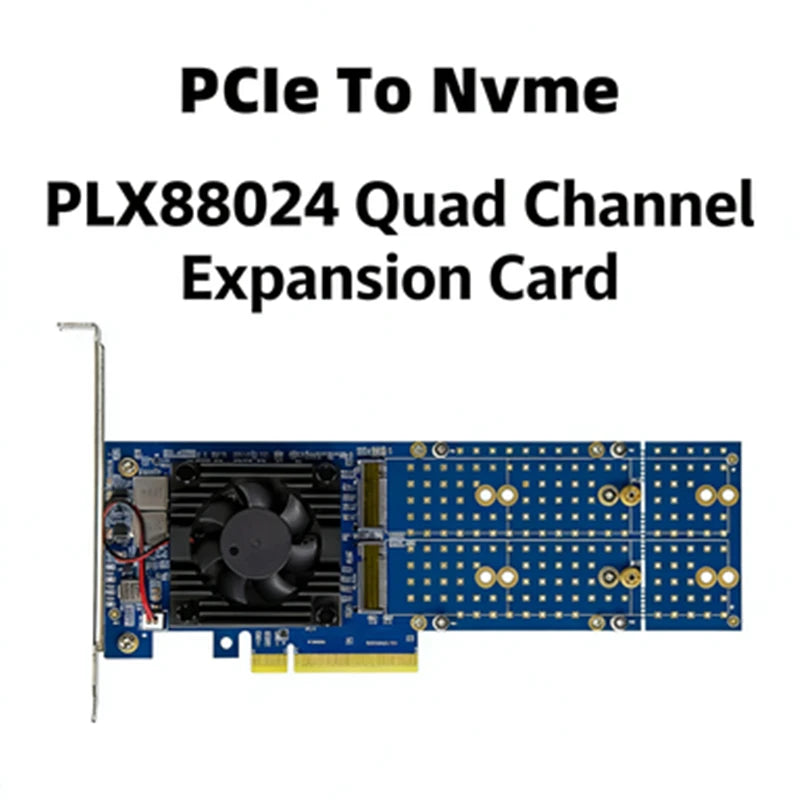

PCIe 4.0 x8 to Quad M.2 NVMe SSD Adapter Built-in PLX88024 Chip No PCIe Bifurcation Required Supports 4x M.2 NVMe SSDs Full Speed Expansion Card

PCIe 4.0 x8 to Quad M.2 NVMe SSD Adapter Built-in PLX88024 Chip No PCIe Bifurcation Required Supports 4x M.2 NVMe SSDs Full Speed Expansion Card

$161.11
$0.00 $161.11 -% OFF
Color
  • 12 years in business
  • Superior Customer Service
  • We Are Reliable & Trusted
View full details
PCIe 4.0 x8 to Quad M.2 NVMe SSD Adapter Built-in PLX88024 Chip No PCIe Bifurcation Required Supports 4x M.2 NVMe SSDs Full Speed Expansion Card
Technical Specifications & Key Features
Feature Specifications Advantage
Main Chipset Broadcom PLX88024 Switch Chip Provides internal PCIe lane switching for maximum stability.
Bifurcation No Bifurcation Required Universal compatibility; works on any motherboard without BIOS splitting.
Bus Interface PCIe 4.0 x8 (Backwards compatible with 3.0/2.0) Massive bandwidth for high-speed Gen4 NVMe performance.

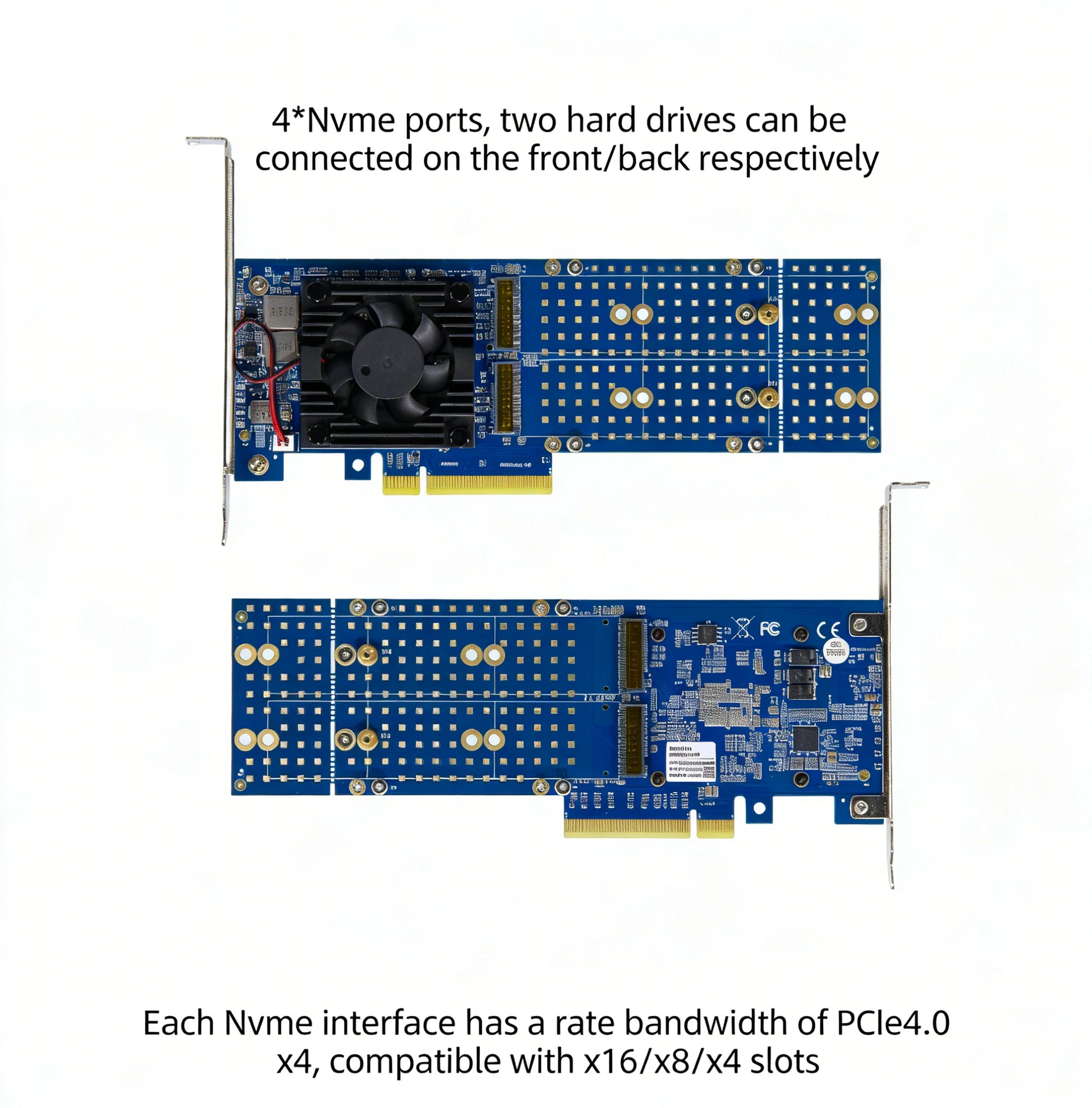

Drive Support 4 x M.2 NVMe (M-Key) Slots Expand your storage up to 4 SSDs via a single PCIe slot.

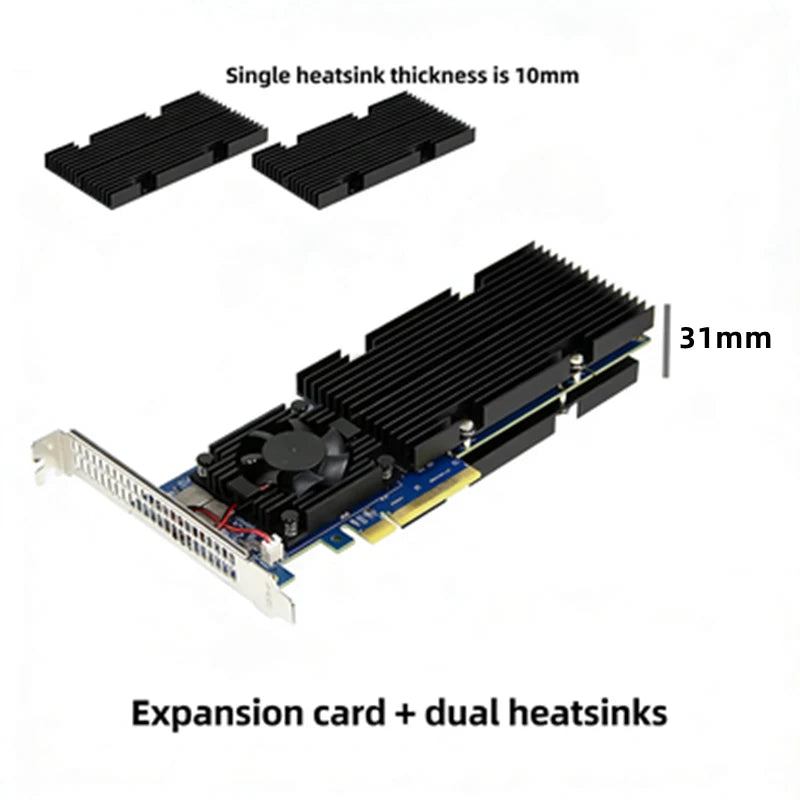

Cooling System Active Cooling Fan + Aluminum Heatsink Prevents thermal throttling; keeps drives cool under heavy load.
SSD Form Factors 2242, 2260, 2280, and 22110 Supports all standard sizes, including long enterprise-grade SSDs.
Installation Plug & Play (No extra drivers needed) Recognized natively by Windows 10/11, Linux, and VMware.
Performance Supports RAID 0/1/10 (via OS/Software) Perfect for high-speed data arrays and video editing.
Why Choose the PLX88024 Version?
  • Total Hardware Freedom: Standard "passive" adapter cards require your motherboard BIOS to support "PCIe Bifurcation" (splitting x16 into x4+x4+x4+x4). If your board doesn't have this, only one SSD will work. This PLX-powered card solves that—it works on any system.
  • Enterprise-Grade Reliability: The PLX88024 chip is built for server environments, ensuring consistent data throughput and preventing "dropped drives" during intense read/write tasks.
  • Future-Proof for 22110 SSDs: Most consumer cards only go up to 2280. Our card supports 22110 SSDs, allowing you to use high-capacity enterprise drives with Power Loss Protection (PLP).
  • "Note: This card requires a PCIe x8 or x16 physical slot. While no BIOS bifurcation is needed, please ensure your Operating System is installed on a GPT partition for NVMe booting capabilities."
